E Pilote Modules make it easy to control your equipment.
PATCHANA systems are wired (Patchana Inv) or radio (Patchana Max) adaptation kits that supply and retrieve data via various data busses to electronically control various remote automotive industry equipment.
The kit is supplied with specific harness to the pedal for Plug&Play installation.

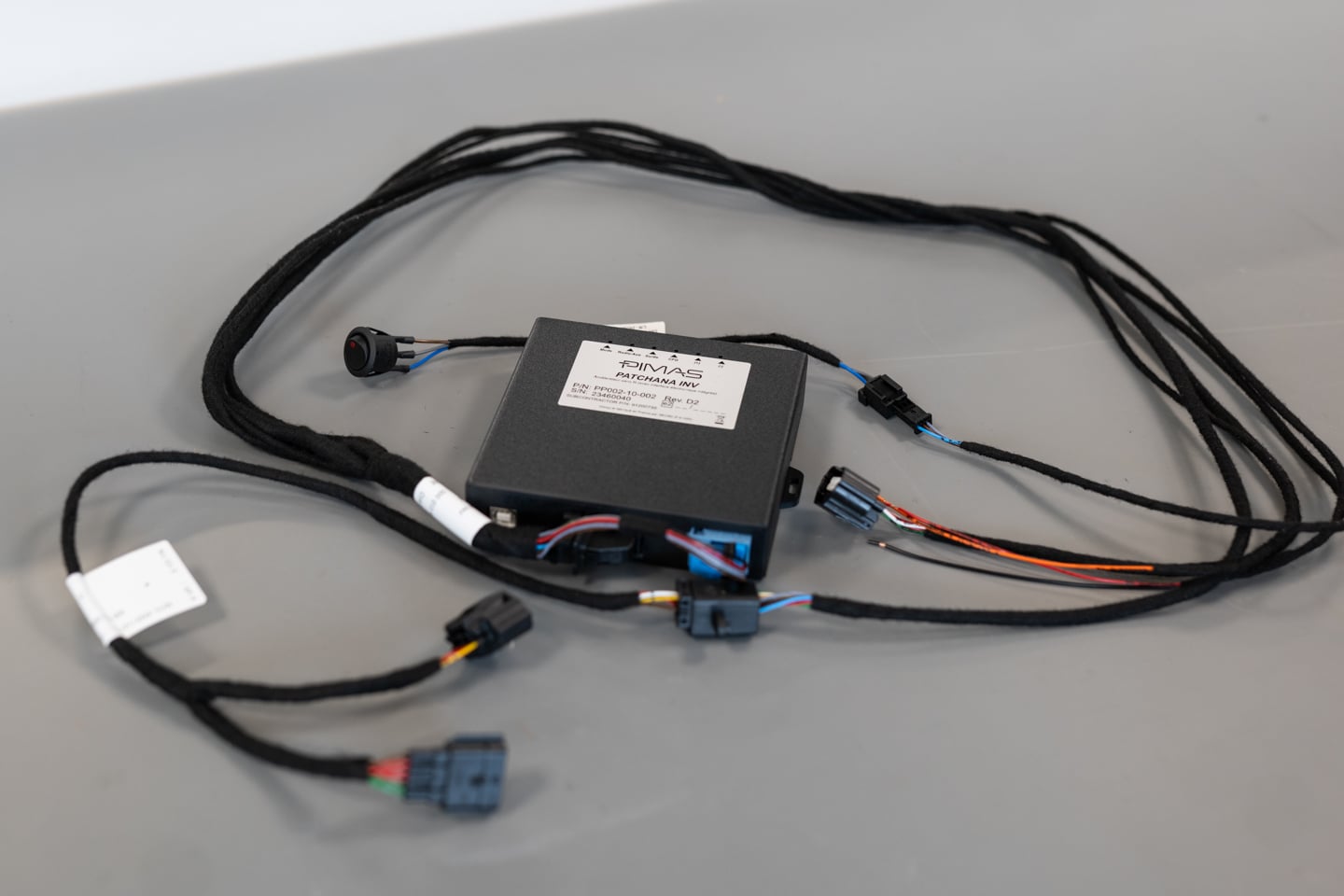

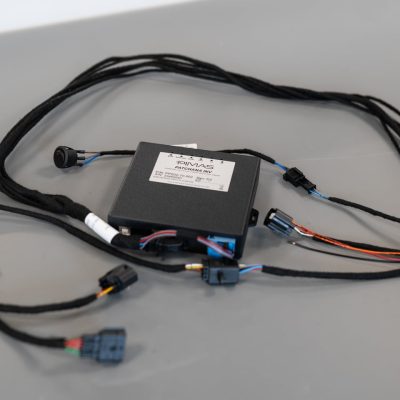

WIRED CONTROLLER • Specific Harness to the vehicle
SUPPLY • +12V permanante • Adaptable to 24V cars with DC24V to DC12V converter
COMMUNICATION WITH PC • USB powered by
INPUTS / OUTPUTS • 1 LED output • 1 kick-down or cluth relay • 1 Mode selection input • 2 analog outputs 0-10V • 2 analog outputs 0-5V (pseudo differential) • 2 analog inputs 0-10v • 2 analog inputs 0-15V
WIRELESS CONTROLLER • Radio 2.4 GHz
SUPPLY • +12V permanante • Adaptable to 24V cars with DC24V to DC12V converter
COMMUNICATION WITH PC • USB powered by 5V from the PC
INPUTS / OUTPUTS • 1 LED output • 1 Security relay • 1 kick-down or cluth relay • 1 Mode selection input • 2 analog outputs 0-11V • 2 analog inputs 0-11V • 2 analog outputs 0-10V • 2 analog outputs 0-5V (pseudo differential) • 2 analog inputs 0-10v • 2 analog inputs 0-15V
